Foundations in Markesan, WI & Surrounding Areas: 4' and 6' Frost Walls
Every structure in Wisconsin needs a foundation that reaches below the frost line. Kuphal Concrete pours poured-concrete frost wall foundations, in 4-foot and 6-foot wall heights, for homes, additions, garages, and shops throughout Markesan, WI, Green Lake County, and Fond du Lac County.
A frost wall is a poured concrete wall that sits on a footing set below the depth where the ground freezes. Wisconsin winters drive frost deep into the soil, and when frozen soil expands it can lift and crack anything sitting above it. A properly built frost wall keeps your structure anchored below that movement, so the building stays level and stable year after year.
Because we handle excavation and backfill as well as concrete, one crew can take your foundation from digging the footings through backfilling the finished walls. That means fewer scheduling gaps, fewer contractors to coordinate, and a foundation built to one standard from start to finish.

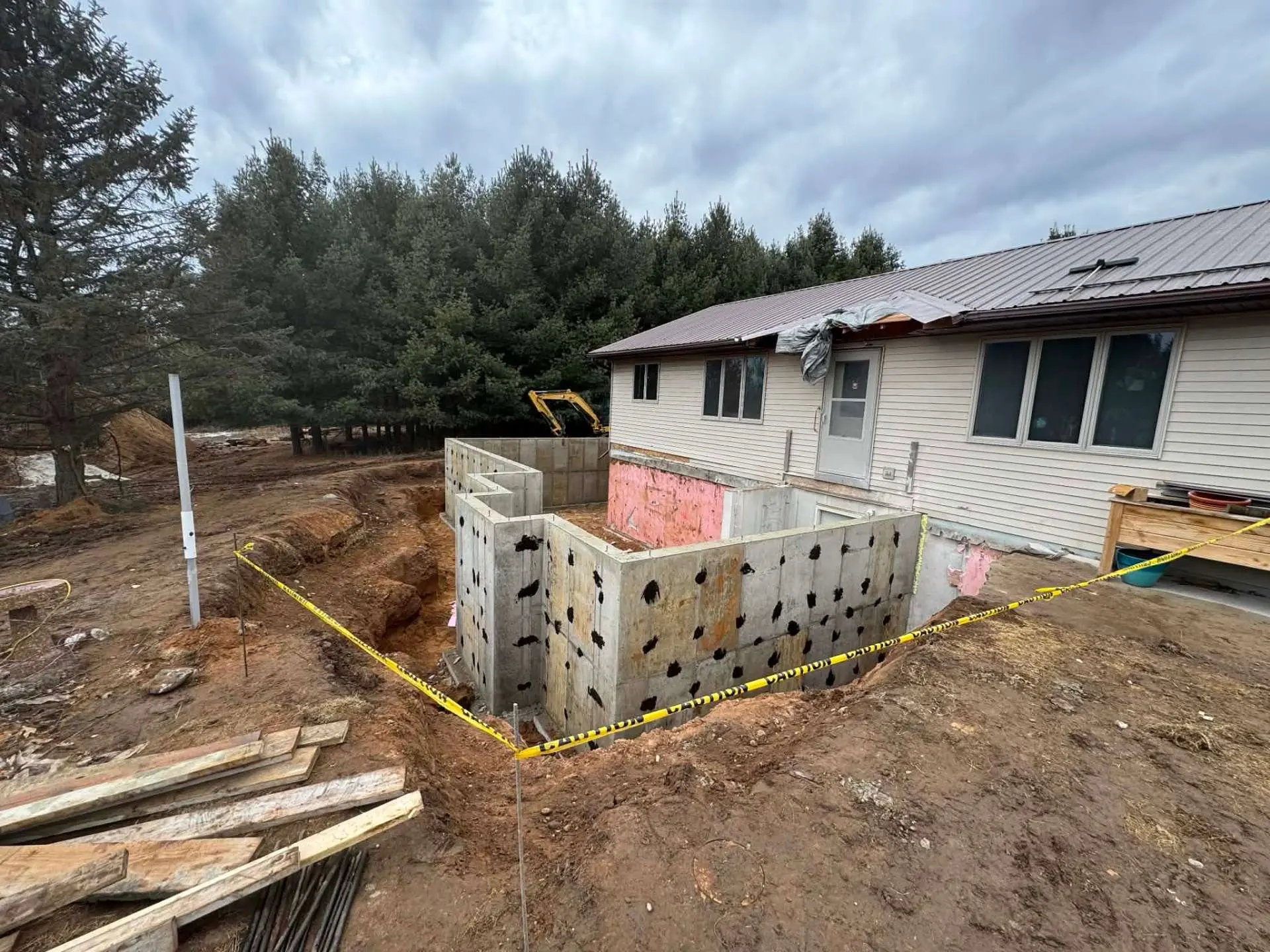

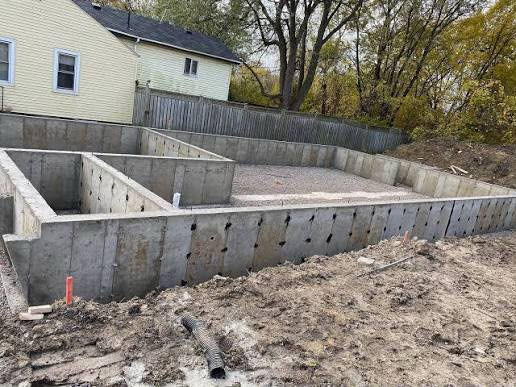

Foundation Photos
4' vs. 6' Frost Walls
4-Foot Frost Walls
A 4-foot wall puts the bottom of the foundation below typical Wisconsin frost depth. It's the most common choice for slab-on-grade homes, attached and detached garages, home additions without a basement, and shops or pole buildings that need a true frost-protected foundation.
6-Foot Frost Walls
A 6-foot wall adds height for situations that call for it: a crawl space beneath the structure, sloped lots where grade drops across the foundation, deeper frost protection on challenging soils, or a building that needs more room below the floor. Your building plans, site conditions, and local requirements determine which height is right.
What's Included
- Site evaluation and review of building plans
- Layout and staking of the foundation footprint
- Excavation for footings and walls
- Poured concrete footings sized for the wall and structure
- Reinforcement (rebar) in footings and walls as specified
- Formed and poured concrete walls at 4' or 6' height
- Anchor bolts, sill plate hardware, and openings per plans
- Form removal and patching of form tie holes
- Damp-proofing of the exterior wall surface
- Drain tile placement where specified
- Backfill and compaction around the finished walls
Quality Factors
Frost Depth
Footings must sit below the frost line to prevent frost heave. In most of Wisconsin that means footings around 48 inches below grade, but local requirements and site conditions can call for more. We build to your plans and to the requirements of your local building inspector.
Footing Size & Reinforcement
Footings spread the weight of the building into the soil. They are sized for the wall and the load above and reinforced with rebar so the foundation carries the structure without settling or cracking.
Square, Level & Plumb
Walls must be square, level on top, and plumb so the framing sits correctly. We check layout and elevations before and during forming, because mistakes in the foundation carry through the entire building.
Moisture Protection
Damp-proofing on the exterior face of the walls and drain tile at the footing help keep water away from the foundation, which matters for any wall that will have soil against it.
Backfill Timing
Walls need to gain enough strength before soil is pushed against them. We time backfill to the curing of the concrete and compact in lifts so the soil around the foundation doesn't settle later.
Timeline Expectations
A typical frost wall foundation takes about 3 to 7 working days from excavation to backfill, depending on size, wall height, and weather. Footings are poured first, then walls are formed and poured. Forms usually come off within a day or two, and backfill follows once the walls have cured enough to take the load. We coordinate with your builder so framing can start on schedule.
What Affects Cost
- Total linear feet of wall
- Wall height (4' vs. 6')
- Footing size and reinforcement requirements
- Excavation depth and soil conditions
- Number of corners, steps, and openings
- Damp-proofing, drain tile, and insulation specifications
- Site access for excavation equipment and concrete trucks
